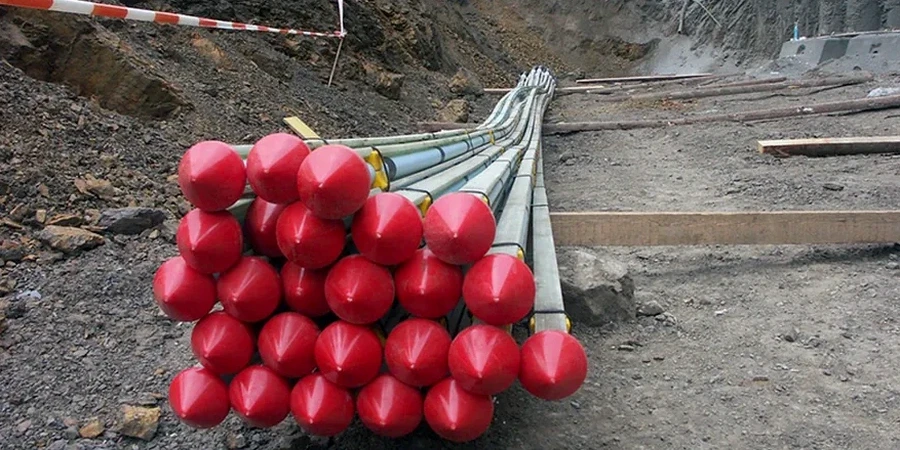

Many contractors in York underestimate the bond stress achievable in the Vale of York’s layered drift deposits until a proof test fails. You see it on tight city-centre sites off Micklegate where deep excavations butt up against listed masonry. The geology beneath York shifts from stiff glacial till to weathered Mercia Mudstone within metres. A generic anchor design won’t cut it. We size active prestressed anchors for immediate load transfer and passive rock bolts for deformation-dependent restraint. Fixed lengths, free lengths, and tendon type are determined from site-specific ground investigation data. This avoids load redistribution during excavation—the precise failure mode that triggers serviceability issues when the retaining walls design doesn’t account for anchor stiffness. For schemes near the River Ouse, where groundwater is perched in sand lenses, we routinely specify double corrosion protection and check for aggressive ground conditions per BS 8081.
In York’s till-and-mudstone profile, anchor capacity often governs the excavation sequence—not just the wall section.
Process and scope
Local ground factors
I’ve reviewed failed anchor installations in York where the problem was blindingly simple: the contractor didn’t flush the borehole properly before grouting. In the local till, smeared cuttings from rotary open-hole drilling form a low-permeability skin that halves the bond. You can’t fix that after the anchor is grouted. Another recurring issue is lock-off loss in active anchors. Seasonal moisture changes in the desiccated crust of the Mercia Mudstone cause volumetric movement that relaxes the prestress over months. The fix is a structured monitoring programme with restressable anchors—not a one-off lift-off check. We specify this up front. Also, anchors installed at low angles beneath adjacent footings can intersect buried services if the plan position isn’t verified against utility records—York has a dense Victorian infrastructure network, especially in the Groves area.
Relevant standards
BS 8081:1989 Code of practice for ground anchorages, BS EN 1997-1:2004 Eurocode 7: Geotechnical design. General rules, BS EN 1997-2:2007 Ground investigation and testing, BS EN 1537:2013 Execution of special geotechnical works. Ground anchors
Other technical services
Anchor feasibility and concept design
Preliminary sizing of fixed and free lengths, anchor spacing, and inclination based on York ground profile and available easements.
Detailed anchor design to BS 8081
Tendon selection, grout specification, corrosion protection class, and load transfer calculations with partial factors from Eurocode 7.
Proof testing and acceptance criteria
Defines investigation, suitability, and acceptance test procedures. Includes lock-off load, datum load, and creep rate limits.
Construction-phase support
Review of anchor installation records, grout take volumes, and load cell data. Advises on contingency if bond length falls short.
Typical parameters
Quick answers
What’s the difference between active and passive anchors?
Active anchors are tensioned after installation to apply a predefined load to the structure. They control movement from the start. Passive anchors only develop resistance as the ground deforms—they’re tensioned by the movement they’re restraining. In York we typically use active anchors for propped excavations where wall deflection must stay tight, and passive rock bolts in cut slopes where some displacement is tolerable.
How much does anchor design cost for a project in York?
For a standalone anchor design package—feasibility, detailed design, and testing specification—the fee typically falls between £950 and £2,870. The range depends on the number of anchor rows, site complexity, and whether we’re integrating with an existing retaining wall design or starting from scratch.
What ground information do you need before designing anchors?
We need borehole logs with SPT N-values, undrained shear strength from triaxial or hand vane tests, and groundwater monitoring data. For anchors bonded in Mercia Mudstone, we’ll also look at the weathering grade and any evidence of gypsum or pyrite that could affect long-term grout durability. A site walkover helps identify access constraints and overhead services.
How do you verify anchor capacity after installation?
We specify a three-stage testing programme: investigation tests on sacrificial anchors to confirm the design bond, suitability tests on a sample of working anchors to validate the installation method, and acceptance tests on every production anchor. The acceptance test applies a load of 1.25 times the working load and measures creep over a defined period per BS 8081. More info.
