Slope Stability Analysis in York – Geotechnical Risk on Glacial Till & River Terraces

The Vale of York hides a deceptive topography. What appears as gentle undulation across the Ouse corridor is frequently undercut by soft laminated clays and perched water within the Sherwood Sandstone-derived till. York’s post-glacial landscape, shaped by retreating Devensian ice and subsequent river terrace deposition, creates stability conditions that catch out engineers accustomed to drier English lowlands. We run slope stability analysis here with a working assumption that pore pressure will be higher than borehole logs alone suggest. The city’s mean annual rainfall of 625 mm concentrates in autumn and winter, saturating the upper weathered zone just when most earthworks programmes are under pressure to finish. A desk study that ignores the Alne Clay Member or the variable head within the York Moraine complex is simply not fit for purpose. Before opening a cut deeper than 2.5 metres near the Foss or Ouse floodplain, we strongly recommend coupling the stability model with an in-situ permeability test to constrain the drainage boundary conditions realistically.

York’s glacial till can lose 40% of its undrained strength within 72 hours of the first autumn saturation – a timeline that catches out earthworks programmes every year.

Process and scope

York sits at roughly 15 m AOD, but the critical slope angles here rarely exceed 18 degrees before triggering shallow rotational failures in the weathered till. Post-2007 flood defence upgrades along the Ouse exposed just how quickly undrained shear strength drops once the desiccated crust is breached. In our stability models we input effective stress parameters from triaxial testing on undisturbed Shelby tube samples taken below the root zone, because index-property correlations developed in the London Basin simply do not transfer to Yorkshire tills. BS EN 1997-1:2004 Design Approach 1 Combination 2 governs most cut slopes within the City of York Council planning area. The partial factor on undrained shear strength (γ_cu = 1.4) combined with the model factor for slope stability means a computed factor of safety of 1.0 in deterministic terms rarely survives the Eurocode check. We see this repeatedly on the A1237 corridor where new commercial development meets the steeper ground toward the former Askham Bog peat margins – a 4-metre cut can require a 1:2.5 batter or a retaining structure once the long-term pore pressure regime is accounted for.

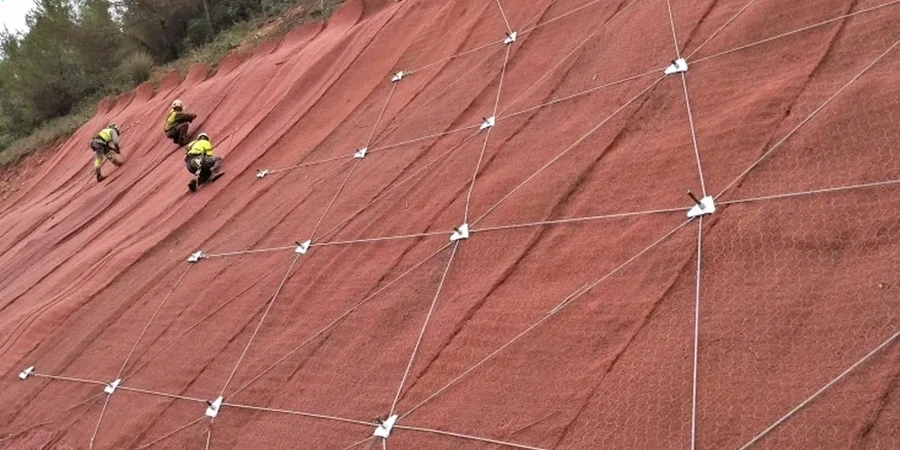

Slope Stability Analysis in York – Geotechnical Risk on Glacial Till & River Terraces

Local ground factors

The most common mistake we see on York sites is treating the weathered till as a homogeneous stiff clay and adopting undrained parameters from a single mid-depth U100. The crust looks competent in summer, but a 48-hour November storm saturates the fissures and the factor of safety collapses. On a 2021 earthworks job near the University of York’s Campus East, a contractor opened a 5-metre cut at 1:1.5 in late September. By mid-October, tension cracks had propagated 2 metres behind the crest and the slope was moving at 3 mm/day – only caught because an adjacent retaining wall survey picked up the tilt. The remedial anchoring and re-grading cost six figures and delayed the frame by eleven weeks. The lesson: York’s till needs effective-stress analysis with a realistic ru value – 0.25 minimum for winter construction – and a design that accounts for the rapid strength loss from the desiccated surface to the saturated bulk. If the cut stays open through winter, pore pressure equilibration can take the FoS below 1.0 even on a 1:2 slope.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnical-engineering.biz

Relevant standards

BS EN 1997-1:2004 – Geotechnical design: General rules, BS 5930:2015+A1:2020 – Code of practice for ground investigations, BS 6031:2009 – Code of practice for earthworks, BS 8006-1:2010+A1:2021 – Code of practice for strengthened/reinforced soils, CIRIA C750 – Good practice on embankment and cutting condition and asset management

Other technical services

01

Limit-equilibrium and finite-element stability modelling

We run both LEM (Slide2, Slope/W) and SSR-FEM (Plaxis 2D) analyses calibrated to site-specific triaxial and index data. For York’s layered till-and-sand profiles, the Morgenstern-Price method with a half-sine interslice function consistently matches observed failure surfaces better than Bishop simplified. We model staged excavation, winter water table rise, and rapid drawdown where slopes interface with attenuation ponds or the Foss floodplain.

02

Construction-phase monitoring and observational method

When a York slope design pushes close to the Eurocode minimum factor of safety – common on constrained commercial plots – we implement the observational method under BS EN 1997-1:2004 Section 4. This means pre-installed inclinometers and piezometers with trigger levels, weekly topographic surveys during bulk excavation, and a agreed contingency sequence (flattening, toe berm, or drainage) that activates without re-negotiating the contract.

Typical parameters

ParameterTypical value
Design standardBS EN 1997-1:2004 (Eurocode 7)
Analysis methodsLEM (Bishop, Spencer, Morgenstern-Price), SSR-FEM
Minimum FoS (permanent, DA1-C2)1.0 (pre-model factor), typically 1.25–1.40 target
Key soil unitYork Moraine glacial till (Alne Clay Member)
Groundwater conditionPerched water at till–sand interface, Ouse base level influence
Triggering mechanism studiedRainfall-induced pore pressure rise, toe excavation, rapid drawdown
Sample disturbanceAssessed via Δe/e₀ reconsolidation ratio in triaxial setup

Quick answers

How much does a slope stability analysis cost for a residential development in York?

For a single slope assessment on a typical York residential plot – say a 3- to 5-metre cut within glacial till with a desk study, one or two boreholes, laboratory triaxial testing, and a limit-equilibrium report – the cost ranges from £1,030 to £3,490. The final figure depends on access constraints, the number of geotechnical units encountered, and whether groundwater monitoring over a winter season is required to satisfy the City of York Council planning condition.

What is the minimum factor of safety required for a permanent cut slope under UK practice?

Under BS EN 1997-1:2004 Design Approach 1 Combination 2, the required over-design factor (ODF) for a permanent slope typically falls between 1.25 and 1.40 after partial factors are applied to soil strength and actions. The exact target depends on the consequence class (CC2 for most building sites), the reliability of the ground investigation data, and whether the observational method is adopted during construction.

How long does a slope stability analysis take from instruction to final report?

A standard programme for a York slope stability analysis runs 4 to 6 weeks: week 1–2 for the ground investigation and sampling, week 3–4 for laboratory testing (triaxial effective-stress suites on two or three specimens plus classification), and week 5–6 for modelling, peer review, and reporting. If winter groundwater monitoring is specified, the fieldwork extends by 8 to 12 weeks to capture the seasonal high stand.

Can you analyse a slope that has already started moving?

Yes – back-analysis of an active failure is often the most reliable way to constrain shear strength parameters for the adjacent ground. We survey the headscarp and tension cracks, install standpipe piezometers to record the failure pore pressure, and run a back-analysis to calibrate c' and φ' for the slipped material. The calibrated parameters then feed into the remediation design – typically a toe berm, drainage, or a retaining structure – with much higher confidence than a greenfield assessment.
